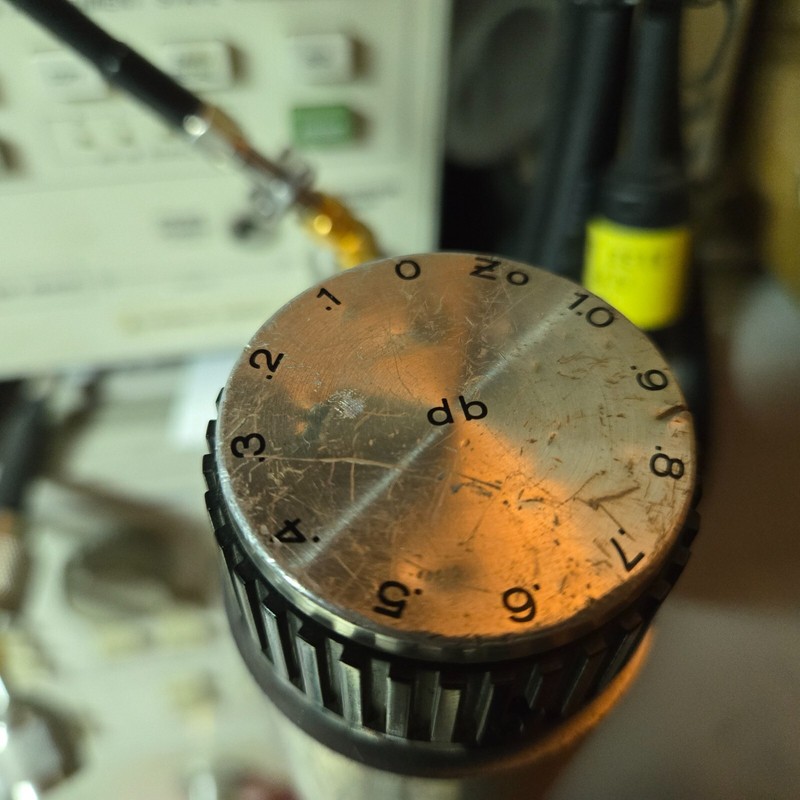

Texscan Corp RA-53 0-1.0dB .1dB/step SMA Rotary Step Attenuator TESTED! Plots

exact item shown. Tested, see analyzer data, the first photo shows the insertion loss: I calibrated the analyzer with a BNC to BNC connector between input and output ports and then installed the Texcan device - you can see that insertion loss is about 1/2 dB up to 1.5 GHz, the markers are at .5, 1, 1.5, 2 GHz, the top of the frequency on the analyzer is 3 GHz. Then with the Texcan device set to 0, I re-zeroed the analyzer so we can now see the attenuation steps. The next series of plots steps in one click (.1 dB) through the range. You can see the attenuation increment my analyzer measures and the consistencey across the band by looking at the marker values. RA-53 TexscanConnectors BNC Female Step: 0.1dB Range: 0-1dB Frequency range: 1GHz Used good wokring conditionNote to me: computer hutch, Bin 11I normally ship within 24 hours of your order, but the post office does not always initiate tracking when I put the packages in the drop off box. Check out my other items!
