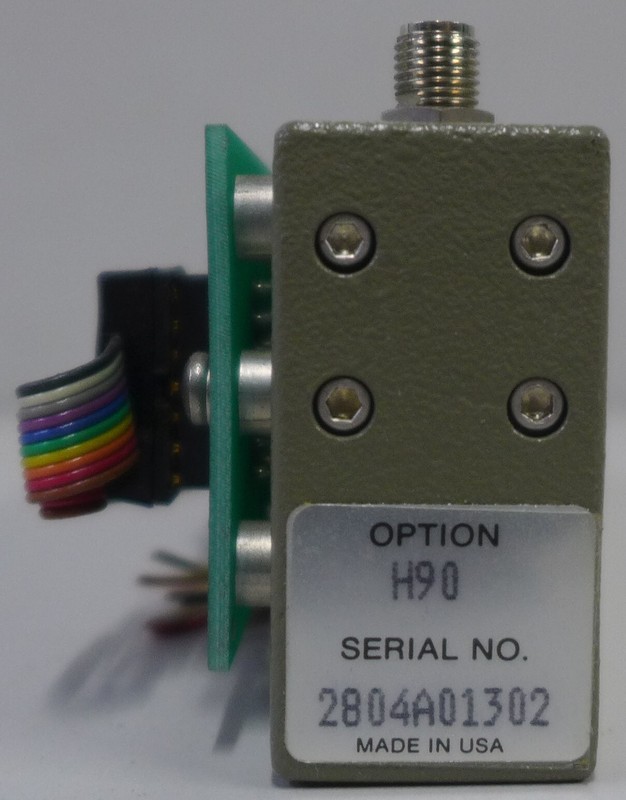

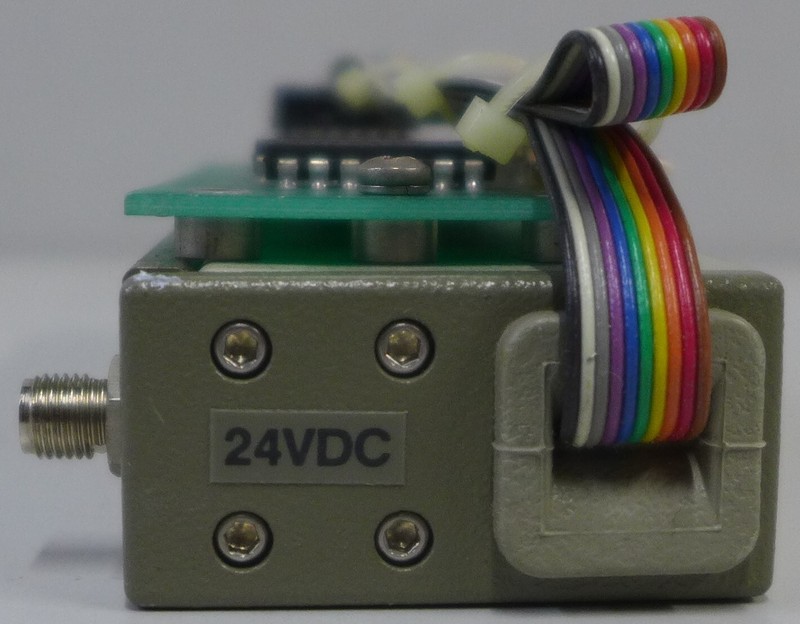

HP 33323K Opt H90 Prog. Attenuator DC-26.5 GHz, 0-90 dB, 10 dB step, 24 VDC

HP 33323K Opt H90 Programmable Attenuator DC-26.5 GHz, 0-90 dB, 10 dB Steps Working The HP 33323K, DC to 26.5 GHz programmable step attenuator, offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 90 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). New Price from Manufacturer for 8497K: $2119.00 (w/o Options) Note: the 33323K is the same as the 8497K Specifications: Frequency Range: DC to 26.5 GHz Attenuation Range: 0 to 90 dB, 10 dB Steps Insertion Loss at 0 dB: 0.4 dB + 0.09 dB/GHz Maximum SWR: 1.25 to 6 GHz, 1.45 to 12.4 GHz, 1.8 to 26.5 GHz Repeatability Life: 0.03 dB Maximum Maximum RF Input Power: 1 W (Average), 100 W (Peak) Connector Type: 3.5 mm (Female) 24V Drive Payment:Payment must clear before shipping.Shipping On This Item:Shipping & Handling can be calculated using the shipping calculator. Shipping address must match "bill to" address.Return Policy: This item may be returned within 30 days from the date you receive your order for refund of sale price. Shipping & Handling fees are non-refundable.Feedback Policy: When the customer is satisfied with a purchase and leaves positive feedback then we are more than happy to leave feedback in kind. Please contact us FIRST if there is a problem or concern.
