Bird 10-A-MFN-10 dB 10 Watt Type-N Bi-Directional Dry RF Attenuator

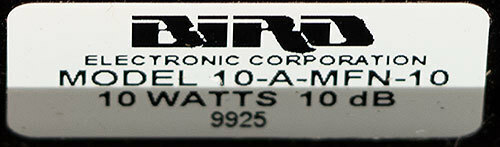

Bird 10-A-MFN-10 dB 10 Watt Type-N Bi-Directional RF Attenuator Comes with what you see in the pictures. If you don't see it, you probably won't get it. Specifications are from Bird and may vary slightly due to upgrades, options, or revisions this unit may or may not have. This unit is measuring 52.0 Ω from connector to connector using a hand-held multimeter. It is guaranteed to work. The Unit's Information Tag Reads: Model Number: 10-A-MFN-10 Description: 9925 Specifications: 10 Watts, 10 dB Features: Self cooling design, needs no cooling plate Fully shielded against production of extraneous radiation. Rugged construction Broadband operation Description: 10-A-MFN Series, RF Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings. Specifications: Coolant Method: Dry, Convection Cooled Impedance: 50 Ohm Operating Position: Any Ambient Temperature: -40°C to 40°C PIM: -110 dBc Min. AC Power: None required Humidity: 95% non-condensing Power Ratings: 10 Watts Attenuation Value: 10 dB Connector: Type-N Male/Female VSWR & Frequency Range: DC to 1 GHz: 1.10:1 1 to 4 GHz: 1.25:1 Dimensions: 2.8" L x 2.3" Dia. (72 mm x 59 mm) Weight: 5.0 oz. (142 g) Finish: Black Anodized Aluminum For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $0.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. Prior to shipment I will need to know the following information (filled out on a form that I will send you) for International Customers or Packages/Freight being Forwarded internationally. International customers may also be subject to a freight forwarder form if applicable.: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? 09/04/19
