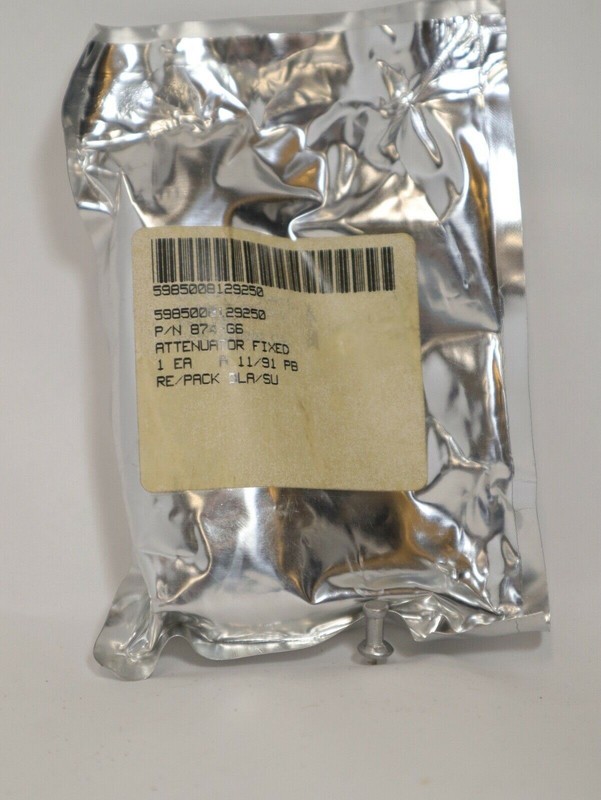

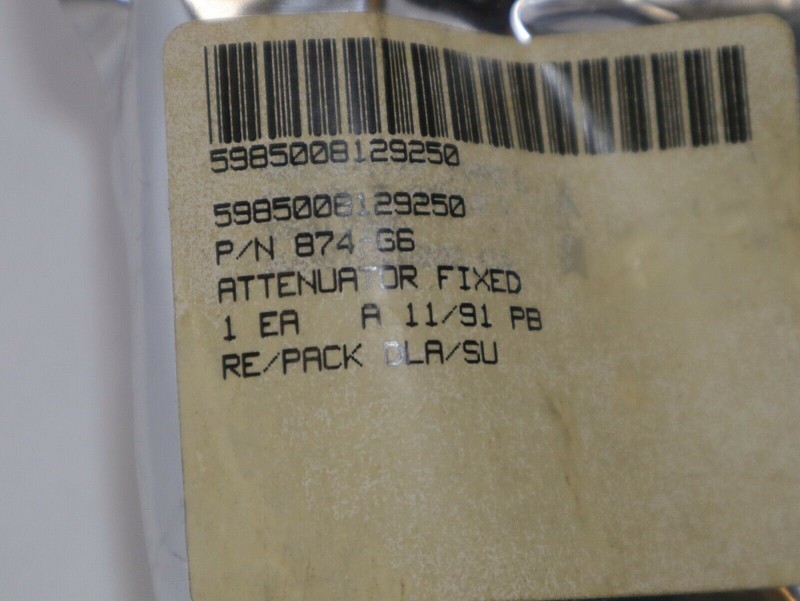

ATTENUATOR,FIXED NSN 5985-00-812-9250 GENRAD P/N 874G6

ATTENUATOR,FIXED NSN 5985-00-812-9250 GENRAD P/N 874G6 Managed Price 440.30 End Item Generator, Signal Munitions List Item - Trade Security Controlled ItemTech InfoAPPLICATION DESIGNTRANSMISSION LINEBODY STYLEROUND, TERMINAL/TERMINALS IN OPPOSITE SURFACEOVERALL LENGTH3.563 INCHES NOMINALOVERALL DIAMETER0.875 INCHES NOMINALVOLTAGE STANDING WAVE RATIO1.10 AND 1.20 AND 1.40INPUT IMPEDANCE RATING IN OHMS50.0OUTPUT IMPEDANCE RATING IN OHMS50.0COAXIAL CONNECTOR SERIES DESIGNATIONSMAPOWER RATING1.0 WATTS AVERAGERF SIGNAL ATTENUATION IN DECIBELS6.0VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE+0.0 TO 1.1 MEGAHERTZ AND +1.1 TO 1.2 MEGAHERTZ AND +1.2 TO 1.4 MEGAHERTZATTENUATION ACCURACY IN DECIBELS-1.50 TO 1.50CONNECTION TYPE PER FUNCTIONFEMALE INPUT AND MALE OUTPUTMOUNTING METHODCONNECTORTERMINAL TYPE AND QUANTITY2 CONNECTORFREQUENCY RANGE1.000 MEGAHERTZ MINIMUM AND 4.000 MEGAHERTZ MAXIMUMMATERIALCOPPER ALLOY BODYFSC APPLICATION DATAANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENTFIIGINCDescriptionDetailA2000014224ATTENUATOR,FIXEDA DEVICE FOR REDUCING THE STRENGTH OF AN ALTERNATING CURRENT SIGNAL BY A FIXED OR PREDETERMINED AMOUNT, WITHOUT CAUSING APPRECIABLE SIGNAL DISTORTION, BY MAINTAINING CORRECT IMPEDANCE MATCPlease check our store frequently for new listings of NOS Military Surplus, we are sorting through thousands of Military Surplus Items and identifying and listing it as we can.
