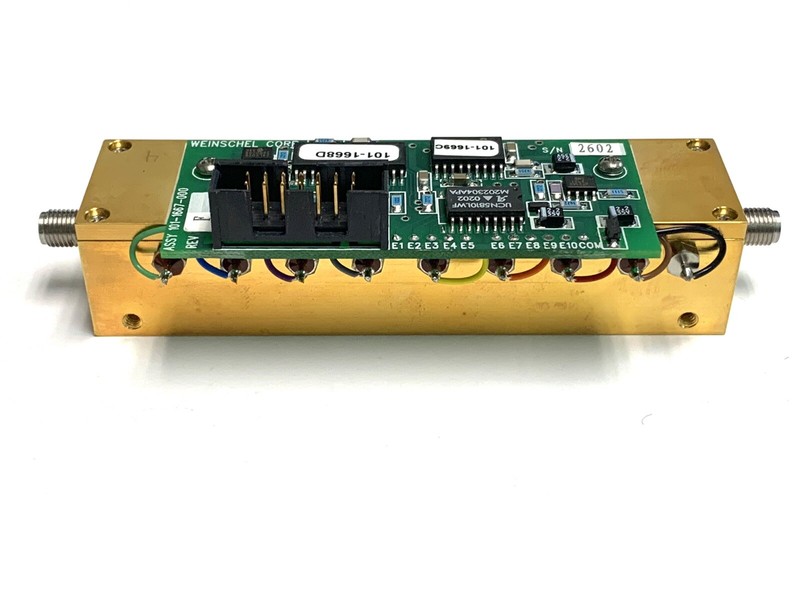

AEROFLEX MCE / WEINSCHEL 3200T-1E PROGRAMMABLE ATTENUATOR 127dB 1dB Step DC-3GHz

AEROFLEX MCE / WEINSCHEL 3200T-1E PROGRAMMABLE ATTENUATOR 127dB 1dB Step DC-3GHz. 8210 compatible. POWER RATING: 1 watt average to 25°C ambient tem- perature, derated linearly to 0.25 watt @ 71°C. 50 watts peak (5 μsec pulse width; 1% duty cycle) RATED SWITCH LIFE: 5 million cycles operations per cell @ 0 dBm CYCLING RATE: 5 Hz maximum per relay DRIVER INTERFACE: Input Supply Voltage: Control Signals: Interface Modes: DC Characteristics (at 25 °C): Parameter VIL Low-level input V: VIH High-level input V: IPU Pullup current VIN Supply Voltage: IIN Supply current: (digital section) ICELL Supply current: +12.0 to +15 V TTL/CMOS compatible parallel / serial Specification -0.5 V min, 0.8 V max 2.0 V min, 5.25 V max 50 μA min, 400 μA max +12.0 to +15.0 V 25 mA 30 mA (per cell) continuous TEMPERATURE RANGE (Operating): -20°C to +70°C TEST DATA: Test data is available at additional cost. CONNECTORS: SMA female connectors per MIL-STD-348 interface dimensions - mate nondestructively with MIL-C-39012 connectors. INTERFACE CONNECTOR: 14 pin .025 square post header on .1 center. Mates with Amp connector 746285-2 or equivalent. CONSTRUCTION: Housing: Aluminum Connectors: Stainless steel body and beryllium WEIGHT: 3200T-XE 3201T-XE 3205T-XE 3206T-XE 3209T-XE 165 g (8.4 oz) 132 g (7.3 oz) 132 g (7.3 oz) 132 g (7.3 oz) 218 g (9.7 oz) Programmable Attenuator/Switch Controller: The Model 8210A Programmable Attenuator/Switch Controller provides a flexible, low cost solution for the operation of programma- ble step attenuators and other electromechanical devices under computer control. Designed to interface to Aeroflex / Weinschel's intelligent programmable attenuators, the 8210A represents a new concept in device control applications for bench test and subsystem designs. The 8210A provides a high-level interface from various industry standard communications interfaces, including IEEE-488 and RS232/RS422/RS485, to the programmable attenuator’s serial Driver Interface Bus. CONTROL CONFIGURATION These programmable attenuators feature an internal micro- controller-based driver that provides a TTL-level digital interface for control of the attenuator relays. This card sim- plifies operation and interfacing requirements, while at the same time providing for greatly enhanced flexibility over past designs. User-selectable modes of operation include both parallel and serial bus. The parallel mode provides a simple, one-bit per relay on/off control with internal pullups for use primarily in single attenuator applications. This mode allows the attenuator to be controlled via a variety of meth- ods, such as a TTL-level digital output port, or mechanical toggle switches. The device bus provides a two-wire serial bus structure and protocol for connecting a number of devices to a single host control interface, suitable for use in larger system and sub-system applications. The digital interface contains non-volatile configuration memory that is used to hold a wide variety of attenuator and driver-depen- dent parameters, including serial number, attenuator cell dB values, relay configurations, and switching requirements, which are all accessible via the digital interface. In either operational mode, the microcontroller enters an idle condition during periods of inactivity, turning off all on-board clocks, reducing EMI concerns, and lowering power consumption. On-board regulation for the digital circuitry allows the attenuator to operate from a single input supply voltage.
